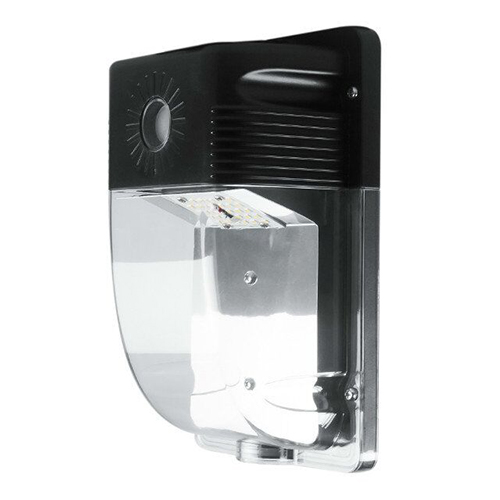

Mini 20W Wall Pack

Item No.:

Product Specification

fin Mini 20W Wall PackWSD-WP-20W Product Specification.pdf


Product Features:

● Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC100-277V;

● Cast aluminium cooling design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell Control Available ( Option)


Product Applications:

WSD LED WALL PACK Lighting series can be widely used in indoor or outdoor lightingWet location, like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.



Structure Features:
● Shell materials: Aluminum & PC

● Color: Black

● Net weight:1.05Kg


Technical Parameters:

Type WSD-WP02W27-XXK-P
Power 20W Lighting Angle 93℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 2150 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>80 Cable Input Connect, No Cable
