WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

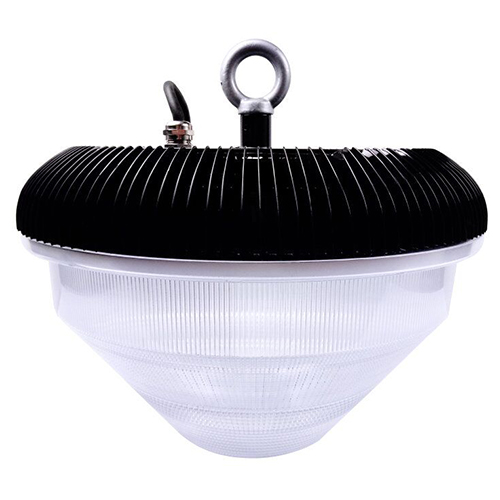

90W LED LOW BAY LIGHT

Item No.:
WSD-LB09W27-XXK
Description

Product Specification

fin 90W LED LOW BAY LIGHTWSD-LB-90W Product Specification.pdf



Product Features:

Philips Lumileds LED, high luminous efficiency and long life.

MEAN WELL High efficiency LED Driver, the wide range input voltage AC100-277V;

Fins cooling design, better cooling, light quality, LED Tj < 85℃.

Excellent optical design, greatly improved the light utilization and evenness.

Dimmable Control gear, Energy-saving, convenient and user-friendly



Product Applications:

WSD LED Low Bay Light series can bewidely used in indoor or half outdoor lighting, like Indoor parking, mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station etc



Structure Features:

Shell materials: 1070 Aluminum & PC

Color: Black or White

Net weight:4.06Kg Unit:mm



Technical Parameter:

Type WSD-LB09W27-XXK
Power 90W Lighting Angle 135℃
Input Voltage AC100~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 10200 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP54
CRI Ra>80 Cable Input Connect, 1.6m
