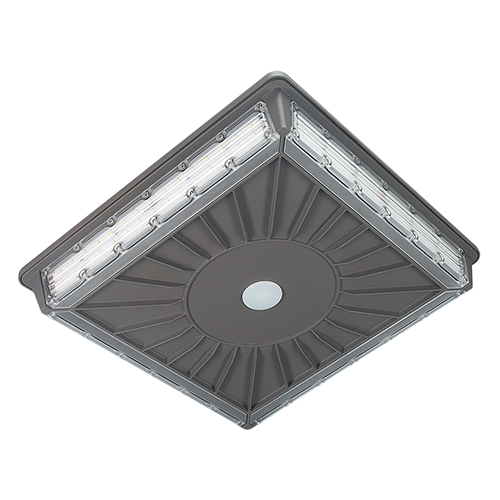

Product Specification
PGC-70W Product Specification.pdf
Product Features：
● High efficiency LED Driver, the wide range input voltage AC120-277V；
● Die Cast aluminium cooling design, high quality and better cooling LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
● Motion sensor control available (option)
Product Applications：
WSD LED Parking Garage Canopy series can bewidely used in indoor or outdoor lighting (wet location), Excellent for Museums, Art Galleries, Shopping Malls , parking lot , Buildings, The lawn, and many more applications.
Structure Features：
● Shell materials: Aluminum & PC
● Color: Dark bronze or White
● Net weight：4.228Kg (9.32 lbs)
Technical Parameter：
| Type | WSD-PGC07W27-XXK | ||
| Power | 70W | Lighting Angle | 275℃ |
| Input Voltage | AC120~277V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 8117 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>80 | Cable | Input Connect, 0.3m |
