WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

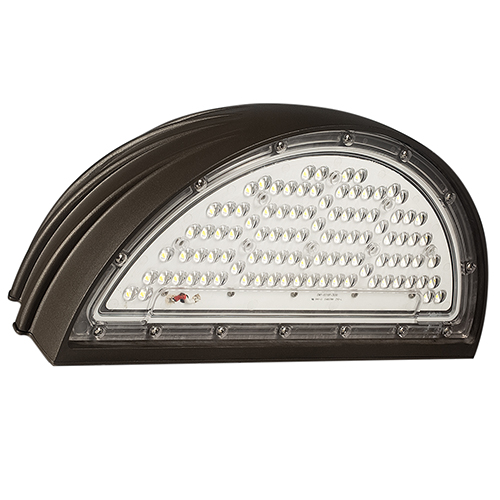

70w LED Football Full cut-off Wall Pack

Item No.:
WSD-BWP07W27-XXK-Z-Y
Description

Product Specification

fin Mini 20W Wall PackWSD-BWP-70W Product Specification.pdf


Features:

● Philips Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC120-277V.

● Dia cast aluminium cooling design , high quality and better cooling for LED Tj < 85℃.

● Excellent Optics design, greatly improve the light utilization and evenness.

● Photocell Control Available (Option)



Product Applications:
WSD LED Football Full Cut-off WALL PACK Lighting series can be widely used in indoor or outdoor lightingWet location, like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.





Structure Features:

● Shell materials: Aluminum

● Color: Dark Bronze

● DLC:5.1

● Packing Size:187mm*359mm*187mm



Technical Parameters:

Type WSD-BWP07W27-XXK-Z-Y
Power 70W Lighting Angle 45*90℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 7700 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No Cable
