WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

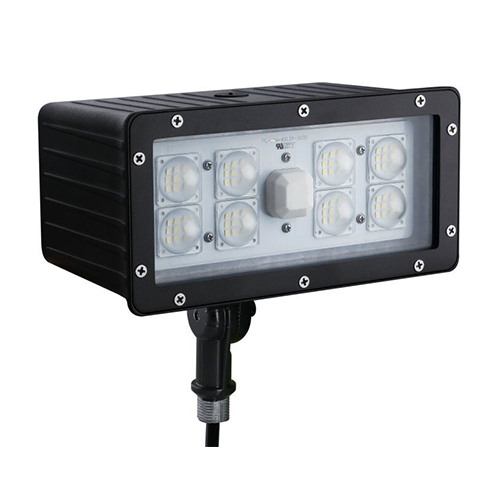

70W LED Flood Lighting

Item No.:
WSD-FL07W27-XXK-XX
Description

Product Specification

fin 70W LED Flood LightingWSD-FL-70W Product Specification.pdf

WSD-FL07W IES.zip



Product Features:

● Philips Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC100-277V;

● Cast aluminium cooling design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell Control Available ( Option)



Product Applications:

WSD LED Flood Lighting series can be widely used in indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc



Structure Features:
● Shell materials: Aluminum & PC

● Color: Dark Bronze / White
● Net weight:2.80Kg



Technical Parameters:

Type WSD-FL07W27-XXK-XX
Power 70W Lighting Angle 80℃
Input Voltage AC100~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 8400 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, 0.3m
