WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

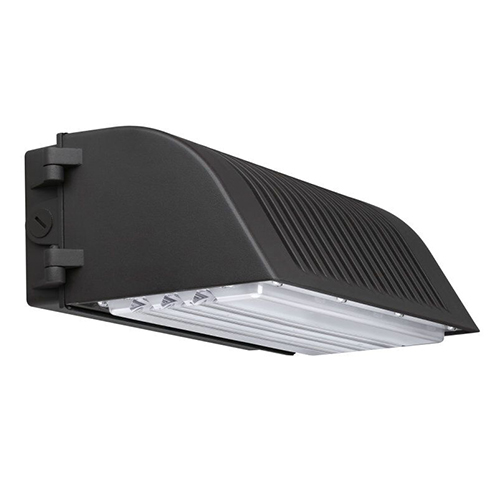

70w Full cutoff wall pack

Item No.:
WSD-FWP07W27-XXK-X-X
Description

Product Specification

45w Full cut off wall pack 4700lm AC100-277V with ULWSD-FWP-70W Product Specification.pdf

45w Full cut off wall pack 4700lm AC100-277V with ULWSD-FWP07W IES.rar




Product Features :

● Philips Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC120-277V;

● Cast aluminium cooling design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell Control Available ( Option)



Product Applications:

WSD LED WALL PACK Lighting series can be widely used in indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc



Structure Features:
● Shell materials: Aluminum & PC

● Color: Dark Bronze / White
● Net weight:2.90Kg



Technical Parameters:

Type

WSD-FWP07W27-XXK-X-X

Power 70W Lighting Angle 62*118℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 8400 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No Cable
