Product Specification

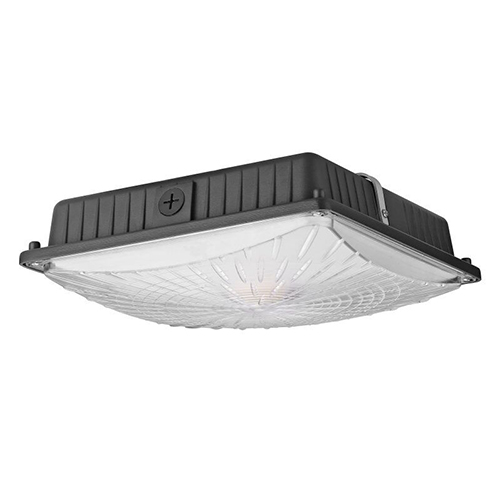

WSD-CP-65W Product Specification.pdf
Product Features：
● Philips Lumileds LED, high luminous efficiency and long life.
● High efficiency LED Driver, the wide range input voltage AC120-277V
● Die-cast Aluminum design, better cooling, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
● Dimmable Control gear, Energy-saving, convenient and user-friendly
Product Applications：
WSD LED SLIM CANOPY Lighting series can be widely used in indoor or outdoor lighting（Wet location）, like parking garage，mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.
Structure Features：
● Shell materials: Aluminum & PC
● Color: Dark Bronze / White
● Net weight：3.80Kg
Technical Parameters：
| Type | WSD-CP65W27-XXK-D-M | ||
| Power | 65W | Lighting Angle | 159℃ |
| Input Voltage | AC120~277V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 8000 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>70 | Cable | Input Connect, 0.3m |
