WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

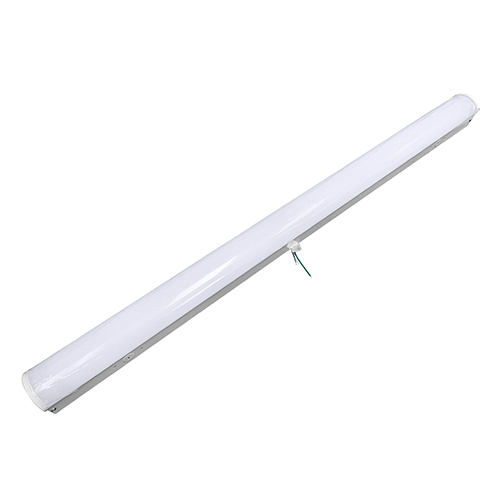

64W LED Strip Light

Item No.:
WSD-ST8FT64-XXK
Description

Product Specification

fin 100W UFO Led High bay WSD-ST-8FT64W Product Specification.pdf

100W UFO Led High bay WSD-ST8FT64W IES.rar



Product Features:

● High luminous efficiency and long working life.
● High efficiency LED Driver, the wide range input voltage AC100-277V.
● Made of high quality PC material, high ignition point, more safe.
● Excellent optical design, greatly improved the light utilization and evenness.
● Inner/outer emergency driver




Product Applications:

WSD LED Strip Lighting series can be widely used in bar ceilings Aplication Commercial,industrial and area lighting,warehouses, offices, hallways etc.





Structure Features:
● Housing:Riveted Sheet Metal c/w standard top and end KO

● Color: White

● Net weight:33.3 lbs



Technical Parameter:

Type

WSD-ST8FT64-XXK

Power 64W Lighting Angle 110℃
Input Voltage AC100~277V LED Brightness Decay <5%/6000 hrs
PF >0.9 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 8320 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Damp
CRI Ra>80 Cable 3 core, 18AWG(0.3M)
