WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

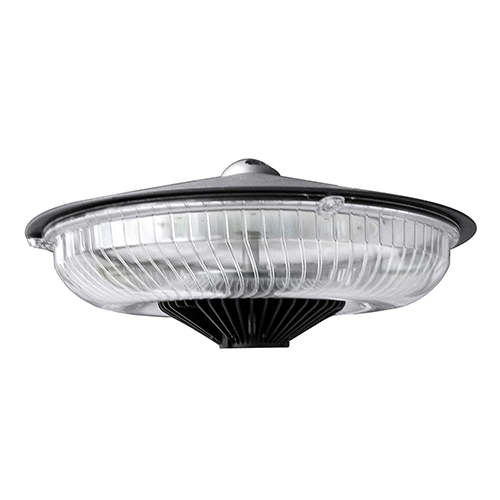

60W LED Round Post Top Light

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Specification

45w Full cut off wall pack 4700lm AC100-277V with ULWSD-RPT-60W Product Specification.pdf

45w Full cut off wall pack 4700lm AC100-277V with ULWSD-RPT06W IES.rar




Product Features :

● Philips Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC120-277V;

● Cast aluminium cooling design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Excellent efficacy ≥120lm/w.



Product Applications:

WSD LED Post Top Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.



Structure Features:
● Shell materials: Aluminum & PC

● Color: Dark Bronze / White
● Net weight:2.90Kg



Technical Parameters:

Type

WSD-RPT06W27-XXK-Z-U

Power 60W Lighting Angle 101℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 7200 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP66
CRI Ra>80 Cable Input Connect, No Cable
