WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

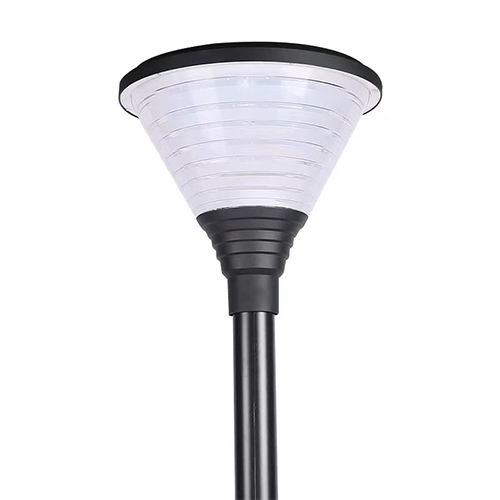

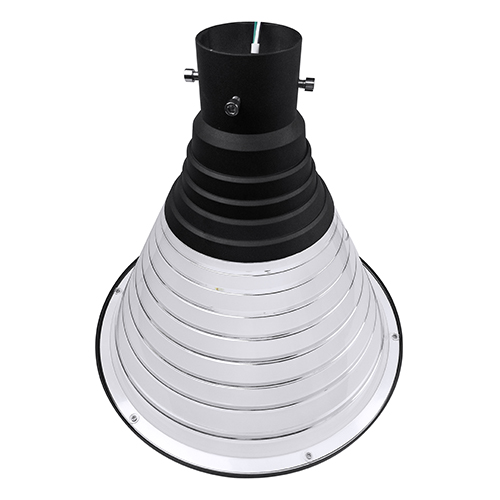

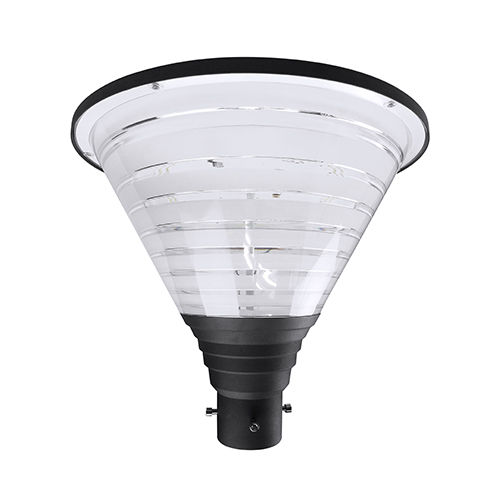

60W LED Hourglass Post Top Light

Item No.:
WSD-HPT06W27-XXK-Z-E
Description

Product Specification

45w Full cut off wall pack 4700lm AC100-277V with ULWSD-HPT-60W Product Specification.pdf



Product Features :

● Optical design, greatly improved the light utilization and evenness.

● High efficiency LED Driver, voltage AC1T20-277.

● Cast Aluminum design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Excellent efficacy ≥140lm/w.



Product Applications:

WSD LED Post Top Lighting series can be widely used in outdoor(wet location) excellent for lawns, courtyards, roadways and many other applications.



Structure Features:
● Shell materials: Aluminum & PC

● Finish: Dark Bronze/White/black(Option)
● Net Weight: 7.7KG (17LBS)
● Product Size: 480mm*477.5mm
● Carton Size: 505mm*505mm*535mm



Technical Parameters:

Type

WSD-HPT06W27-XXK-Z-E

Power 60W Lighting Angle 162℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.98 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 8480 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location
CRI Ra>70 Cable 3 cores, 18AWG(0.5m)
