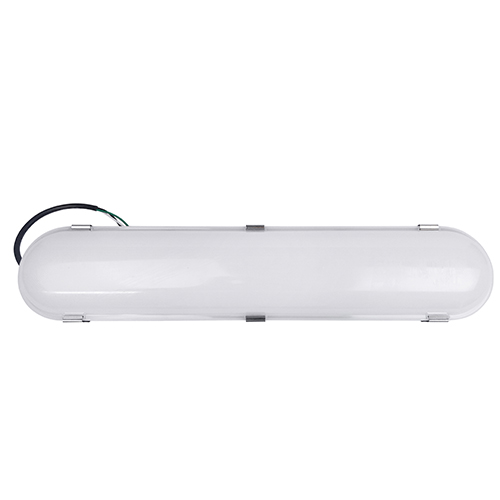

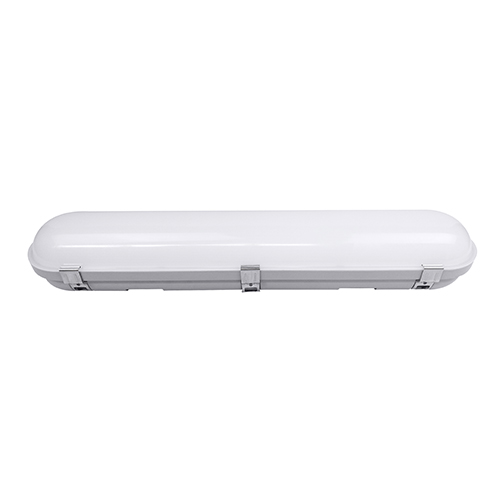

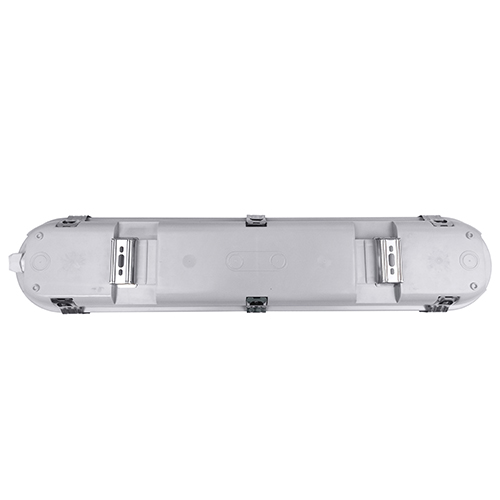

45W Led Vapor Tight Fixture Light

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Specification



100W LED Street LightWSD-VP45W Product Specification.pdf

100W LED Street LightWSD-VP4FT45W IES.rar



Product Features:

● High efficiency LED Driver, the wide range input voltage AC120-277V
● Top brand LED high luminous efficiency and long life.
● Housing: Riveted sheet metal c/w standard top and end KO.
● Excellent optical design, greatly improved the light utilization and evenness.

● DLC Premuim listed as LED vapor Tight Light.



Product Applications:

WSD LED Vapor Tight Fixture Lighting series can be widely used in supermarket, farm, packing garage, warehouse and other places, where the environment is highly corrosive, dust is more, there is rain demand for industrial lighting.



Structure Features:

●Shell material:Aluminum & PC
●Color:  White
●Efficacy:>140 LM/W



Technical Parameters:



Type

WSD-VP4FT45W27-XXK

Power 45W Lighting Angle 118°
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.9 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 5800 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>80 Cable Input Connect, 0.6m
