Product Features：
● High luminous efficiency and long working life.
● High efficiency LED Driver, the wide range input voltage AC120-277V.
● Sheet iron design, high quality and better cooling for LED Tj < 85℃.
● The 0-10V Dimming type is continuous.
● The product can dim to 10%
Product Applications：

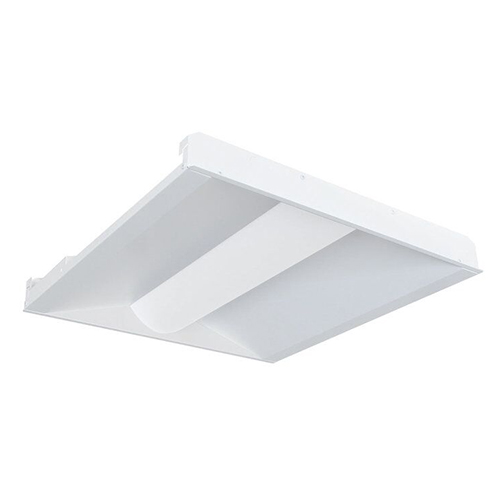

WSD LED Troffer Light series can be widely used in bank, cafe, hospital, office, residence, shopping mail, livingroom, plane and train etc.
Technical Parameters：
|
Type |
WSD-24TRF45W-XXK |
||
|
Power |
45W |
Lighting Angle |
119℃ |
|
Input Voltage |
AC120~277V |
LED Brightness Decay |
<5%/6000 hrs |
|
PF |
>0.98 |
L70 Life |
>140,000 hrs |
|
Driver Efficiency |
>90% |
Working Temperature |
-30-+45℃ |
| Luminous Flux | 5200 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Dry |
| CRI | Ra>80 | Cable | 3 core, 18AWG |
