WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

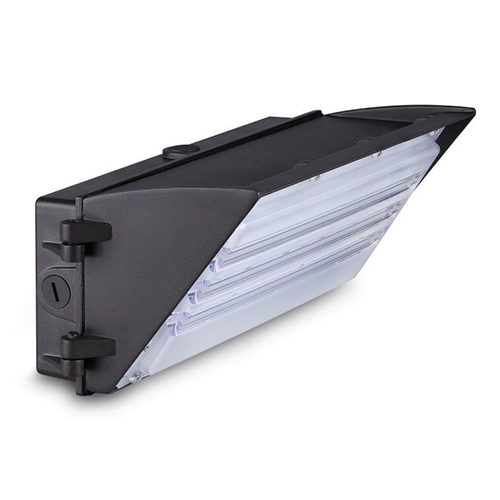

45W LED Half Cut-off Wall Pack

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Specification

fin 45W LED Half Cut-off Wall PackWSD-HWP-45W Product Specification.pdf

45W LED Half Cut-off Wall PackWSD-HWP45W IES.rar



Features:

Philips Lumileds LED, high luminous efficiency and long working life.

High efficiency LED Driver, the wide range input voltage AC100-277V or AC347V

Cast aluminium cooling design better cooling, better cooling, light quality, LED Tj < 85℃.

Excellent Optics design, greatly improve the light utilization and evenness.

Photocell Control Available (Option)



Product Applications:

WSD LED WALL PACK Lighting series can be widely used in indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.



Structure Features:

Shell materials: Aluminum & PC .

Color: Dark Bronze

Net weight:3.00Kg Unit:mm

Packing Size:400mm*260mm*228mm



Technical Parameters:

Type

WSD-HWP45W27-XXK

WSD-HWP45W347-XXK

Power 45W Lighting Angle 56*94℃
Input Voltage AC100~277V or 347V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 4950 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No cable
