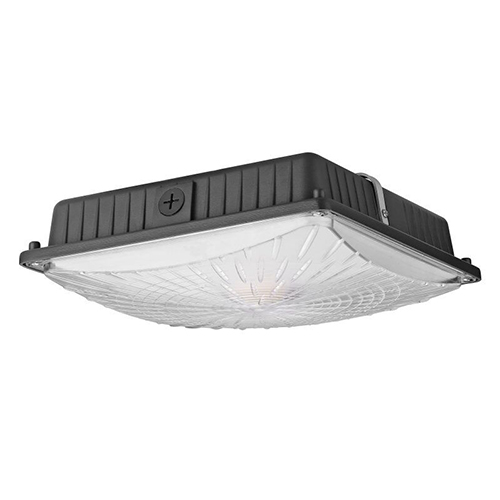

45W 347V LED Slim Canopy

Item No.:

Product Specification

fin 45W LED Slim Canopy WSD-CP-45W347V Product Specification.pdf

WSD-CP45W347V IES.zip

Product Features:

Philips Lumileds LED, high luminous efficiency and long life.

High efficiency LED Driver, the wide range input voltage AC120-277V or 347V

Die-cast Aluminum design, better cooling, light quality, LED Tj < 85℃.

Excellent optical design, greatly improved the light utilization and evenness.

Dimmable Control gear, Energy-saving, convenient and user-friendly


Product Applications:

WSD LED SLIM CANOPY Lighting series can be widely used in indoor or outdoor lightingWet location, like parking garagemechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.



Structure Features:

Shell materials: Aluminum & PC

Color: Dark Bronze / White

Net weight:3.50Kg



Technical Parameters:

Type WSD-CP45W347-XXK-D-M
Power 45W Lighting Angle 159℃
Input Voltage AC347V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 8000 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>80 Cable Input Connect, No Cable
