Product Specification
WSD-ST-4FT/8FT40W Product Specification.pdf
WSD-ST4FT40W IES.rar
WSD-ST8FT40W IES.rar
Product Features：
● High luminous efficiency and long working life.
● High efficiency LED Driver, the wide range input voltage AC100-277V.
● Made of high quality PC material, high ignition point, more safe.
● Excellent optical design, greatly improved the light utilization and evenness.
● Inner/outer emergency driver
Product Applications：
WSD LED Strip Lighting series can be widely used in bar ceilings Aplication Commercial,industrial and area lighting,warehouses, offices, hallways etc.
Structure Features：

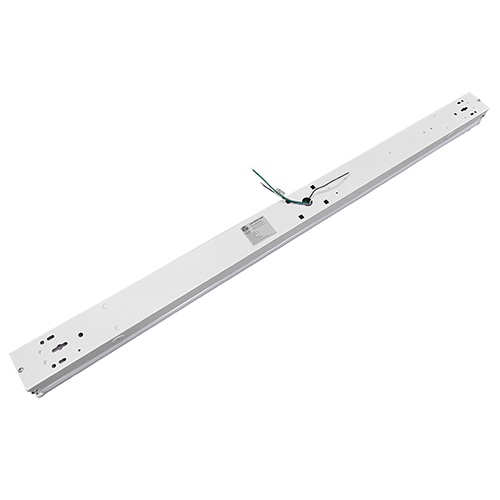

● Housing：Riveted Sheet Metal c/w standard top and end KO
● Color： White
● Net weight：19.4 lbs/33.3 lbs
Technical Parameter：
| Type |
WSD-ST4FT40-XXK |
||
| Power | 40W | Lighting Angle | 110℃ |
| Input Voltage | AC100~277V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.9 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 5200 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Damp |
| CRI | Ra>80 | Cable | 3 core, 18AWG(0.3M) |
