WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

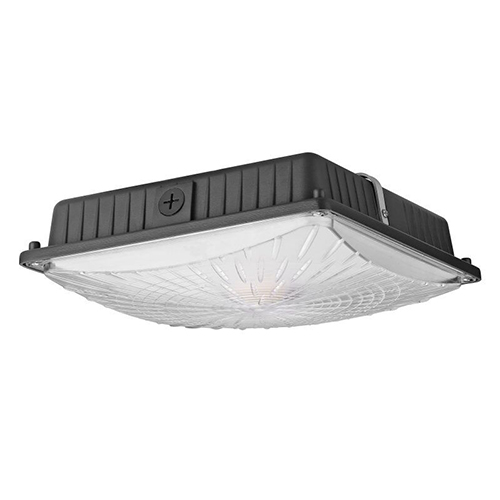

35W LED Slim Canopy

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Specification

35W LED Slim CanopyWSD-CP-35W Product Specification.pdf

WSD-CP35W IES.zip


Product Features:

● Philips Lumileds LED, high luminous efficiency and long life.

● High efficiency LED Driver, the wide range input voltage AC120-277V

● Die-cast Aluminum design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Dimmable Control gear, Energy-saving, convenient and user-friendly



Product Applications:

WSD LED SLIM CANOPY Lighting series can be widely used in indoor or outdoor lightingWet location, like parking garagemechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.





Structure Features:

● Shell materials: Aluminum & PC

● Color: Dark Bronze / White

● Net weight:3.50Kg



Technical Parameters:

Type WSD-CP35W27-XXK-D-M
Power 35W Lighting Angle 159℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 4600 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No Cable
