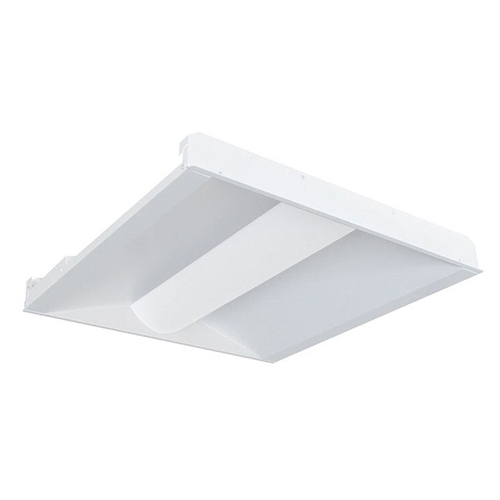

30W LED Troffer Light

Item No.:
WSD-22TRF30W-XXK
Description

Product Features:

● High luminous efficiency and long working life.
● High efficiency LED Driver, the wide range input voltage AC120-277V.
● Sheet iron design, high quality and better cooling for LED Tj < 85℃.
● The 0-10V Dimming type is continuous.

● The product can dim to 10%




Product Applications:

WSD LED Troffer Light series can be widely used in bank, cafe, hospital, office, residence, shopping mail, livingroom, plane and train etc.



Technical Parameters:

Type

WSD-22TRF30W-XXK

Power

30W

Lighting Angle

119℃

Input Voltage

AC120~277V

LED Brightness Decay

<5%/6000 hrs

PF

>0.98

L70 Life

>140,000 hrs

Driver Efficiency

>90%

Working Temperature

-30-+45℃

Luminous Flux 4000 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Dry
CRI Ra>80 Cable 3 core, 18AWG
