WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

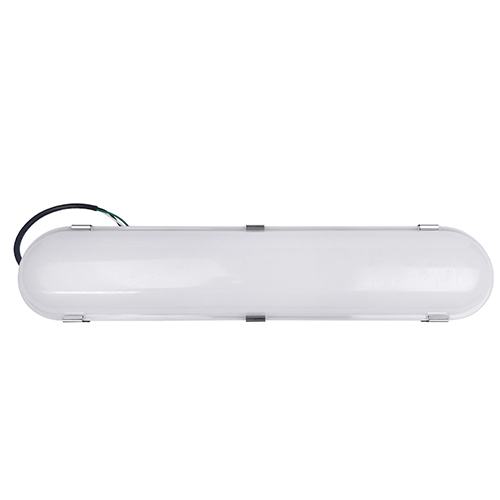

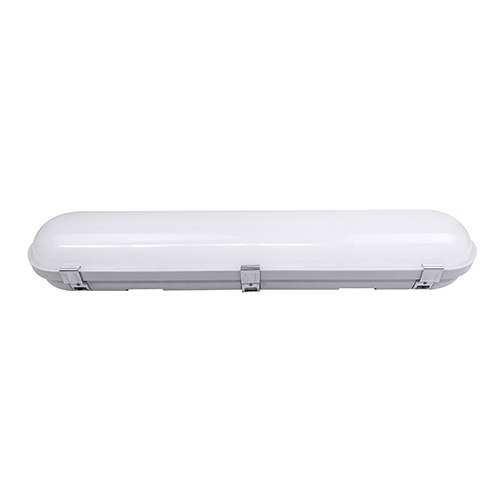

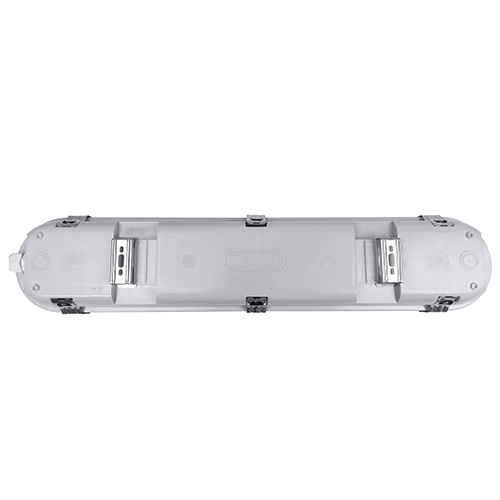

25W Led Vapor Tight Fixture Light

Item No.:
WSD-VP2FT25W27-XXK
Description

Product Specification



100W LED Street LightWSD-VP25W Product Specification.pdf

100W LED Street LightWSD-VP2FT25W IES.rar



Product Features:

● High efficiency LED Driver, the wide range input voltage AC120-277V
● Lampshade-inner surface stripe design make the light diffusion angle greater and the light more uniform;
● Made of high quality PC material, high ignition point, more safe;
● DLC Premuim listed as LED Vapor Tight light ;

● Excellent efficacy: >140lm/w;



Product Applications:

WSD LED Vapor Tight Fixture Lighting series can be widely used in supermarket, farm, packing garage, warehouse and other places, where the environment is highly corrosive, dust is more, there is rain demand for industrial lighting.



Structure Features:

●Shell material: Aluminum & PC
●Color: White
●Efficacy:>140 LM/W



Technical Parameters:

Type

WSD-VP2FT25W27-XXK

Power 25W Lighting Angle 118°
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.9 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 3300 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location
CRI Ra>80 Cable Input Connect, 0.6m
