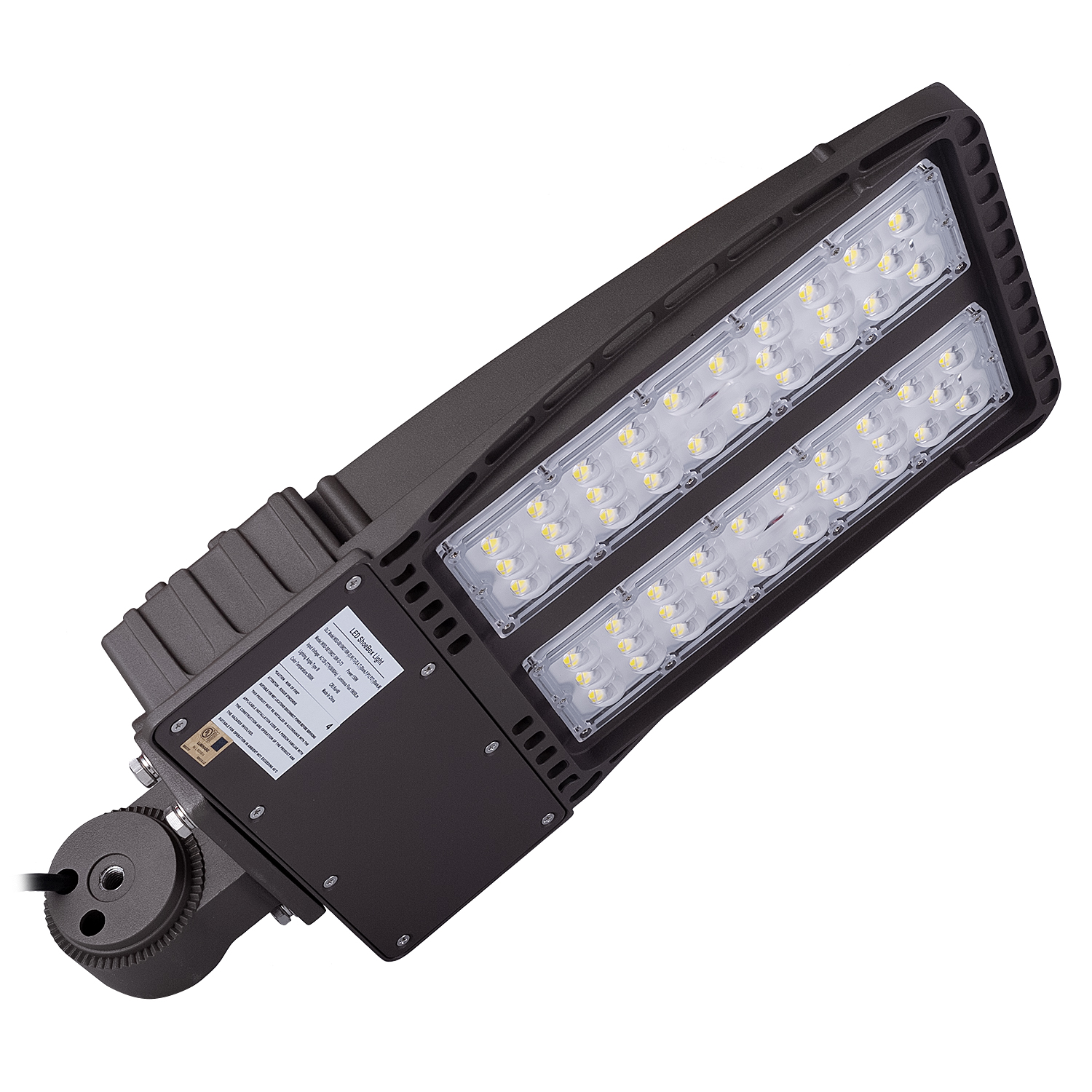

Product Specification
WSD-SB-200W Product Specification.pdf
Product Features：
● High efficiency LED Driver, the wide range input voltage AC100-277V or AC277-480V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
● Photocell control available ( Option)
Product Applications：
WSD LED SHOEBOX Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.
Structure Features：
●Shell material:Aluminum & PC
●Color: Dark Bronze / White
●Net weight：7.50Kg
Technical Parameters：
| Type |
WSD-SB20W27-XXK-Z-TN-U-Y WSD-SB20W48-XXK-Z-TN-U-Y |
||
| Power | 200W | Lighting Angle | Type II, III, V, Vs. |
| Input Voltage | AC120~277V or AC277~480V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 27000 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>70 | Cable | 3 core, 18AWG |
