WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

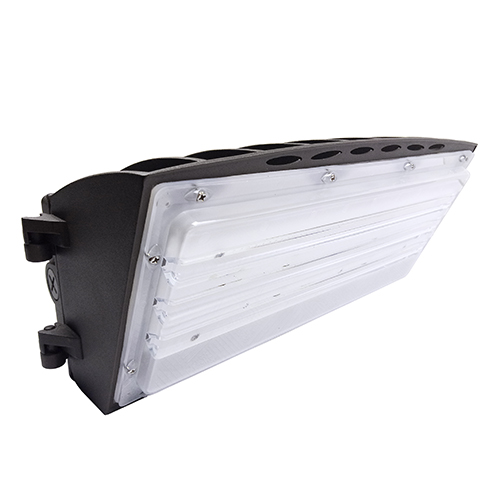

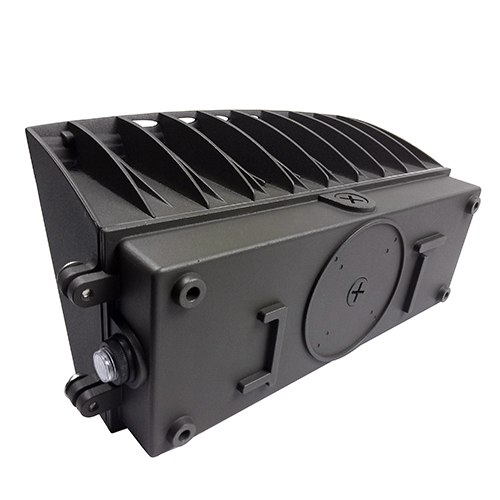

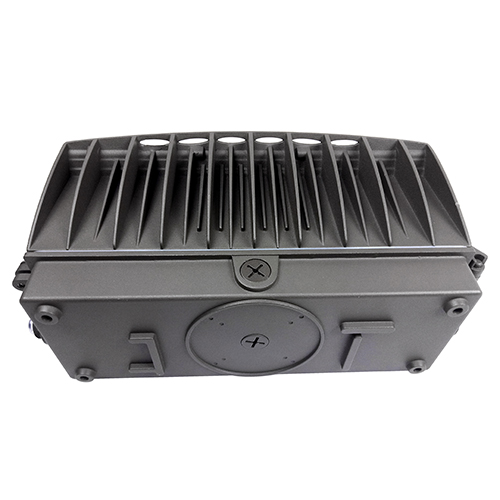

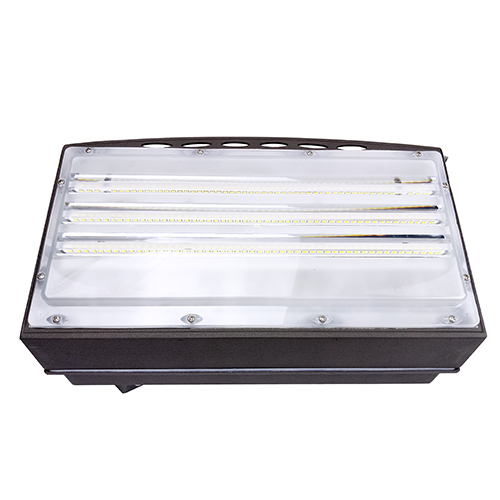

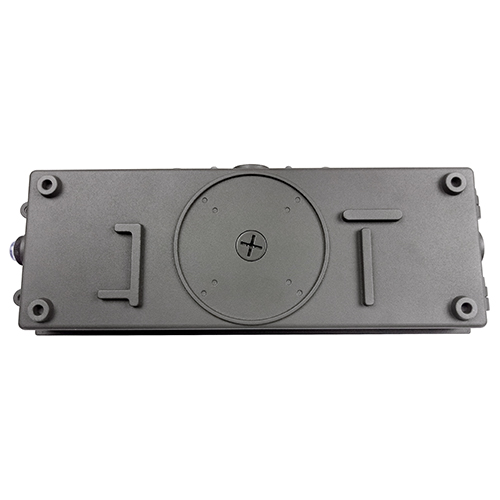

120W LED Semi-cutoff WALL PACK

Item No.:
WSD-HWP12W27-XXK-Z-Y
WSD-HWP12W48-XXK
Description

Product Specification

fin 70W LED Semi-cutoff WALL PACKWSD-HWP-120W Product Specification.pdf

70W LED Semi-cutoff WALL PACKWSD-HWP12W IES.rar


Product Features:

● Philips Lumileds LED, high luminous efficiency and long working life.

● High efficiency LED Driver, the wide range input voltage AC100-277V or AC277-480V

● Cast aluminium cooling design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell Control Available ( Option)


Product Applications:

WSD LED WALL PACK Lighting series can be widely used in indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.



Structure Features:
● Shell materials: Aluminum & PC .
● Color: Dark Bronze
● Net weight:3.50Kg



Technical Parameters:

Type

WSD-HWP12W27-XXK-Z-Y

WSD-HWP12W48-XXK

Power 120W Lighting Angle 83℃
Input Voltage AC100~277V or AC277~480V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 15800 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No cable
