WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

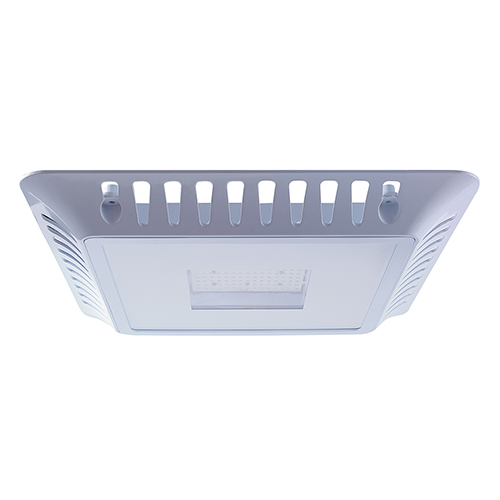

120W Led Gas Station Light

Item No.:
WSD-CP12W27-XXK-Z
Description

Product Specification

fin 100w Led Gas Station Retrofit Kits WSD-CP-120W Product Specification.pdf

WSD-CP12W27 IES.zip


Product Features:

● Philip Lumileds LED, high luminous efficiency and long working life.
● High efficiency LED Driver, the wide range input voltage AC100-277V
● Die Casting aluminium cooling design better cooling, better cooling, light quality, LED Tj < 85℃.
● Excellent lampshade design, greatly improved the light utilization and evenness.



Product Applications:

Can be widely used in Gas Stations.



Structure Features:

● Shell materials: Aluminum & Glass

● Color: White

● DLC: 5.1



Technical Parameters:

Type      WSD-CP12W27-XXK-Z
Power 120W Lighting Angle 111℃
Input Voltage AC100~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 16490 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No Cable
