Product Specification
WSD-UHB-100W Product Specification.pdf
Product Features：

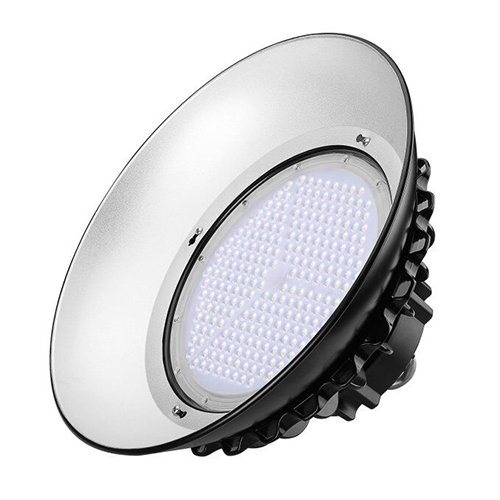

WSD UFO LED High Bay Lighting series can be widely used in outdoor, indoor or outdoor lighting(Wet location), like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.
Structure Features：
● Shell materials: Magnesium Alloy
● Color: Black
● Net weight：3.50Kg
Technical Parameter：
| Type |
WSD-UHB10W27-XXK-AL-M WSD-UHB10W48-XXK-AL-M |
||
| Power | 100W | Lighting Angle | 92℃ |
| Input Voltage | AC120~277V or AC200~480V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 15000 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>70 | Cable | 3 core, 18AWG(0.3M) |
