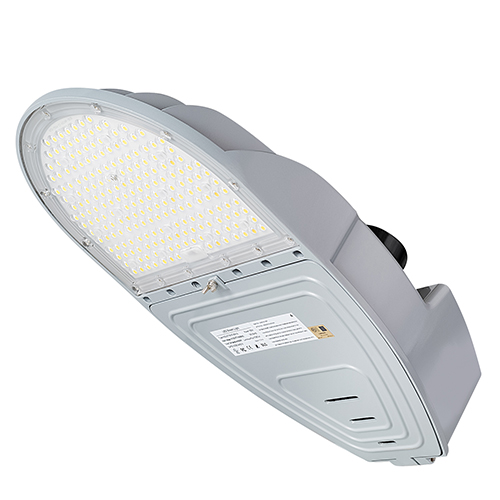

Product Specification
WSD-ST10W Product Specification.pdf
Product Features：
● High efficiency LED Driver, the wide range input voltage AC100-277V or AC277-480V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
Product Applications：
WISDOM LED Street Light series can be widely used in outdoor lighting(Wet location),Excellent for Museums, Art Galleries, Underground parking lot, Buildings,The lawn, Industrial areas, Residential areas, Sidewalks, Parking lot, Schools and etc,and many more applications.
Structure Features：
● Shell material:Aluminum & PC
● Finish: Dark Bronze/White
● Net weight：4.5Kg (9.9 lbs)
● Carton Size:536mm*347mm*170mm
Technical Parameters：
| Type |
WSD-ST10W27-XXK-S-P WSD-ST10W48-XXK-S-P |
||
| Power | 100W | Lighting Angle | 85*140° |
| Input Voltage | AC100~277V or AC277~480V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | L70 Life | >140,000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30-+45℃ |
| Luminous Flux | 15000 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>70 | Cable | Input Connect, 0.6m |
