Product Specification
WSD-SB-100W Product Specification.pdf
Product Features：
● High efficiency LED Driver, the wide range input voltage AC100-277V or AC277-480V
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.
● Photocell control available ( Option)
Product Applications：

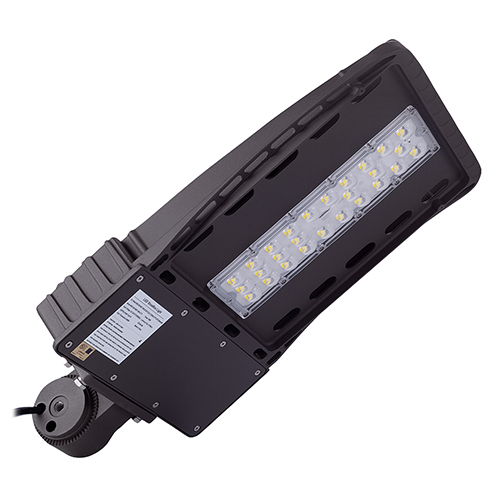

WSD LED SHOEBOX Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.
Structure Features：
●Shell material:Aluminum & PC
●Color: Dark Bronze / White
●Net weight：4.50Kg
Technical Parameters：
|
Type |
WSD-SB10W27-XXK-Z-TN-U-Y WSD-SB10W48-XXK-Z-TN-U-Y |
||
|
Power |
100W |
Lighting Angle |
Type II, III, V, Vs. |
|
Input Voltage |
AC120~277V or AC277~480V |
LED Brightness Decay |
<5%/6000 hrs |
|
PF |
>0.95 |
L70 Life |
>140,000 hrs |
|
Driver Efficiency |
>90% |
Working Temperature |
-30-+45℃ |
| Luminous Flux | 13000 Lm | Storage Temperature | -40-+80℃ |
| Color Temperature | 3000K/4000K/5000K/5700K | Protection Level | Wet Location/IP65 |
| CRI | Ra>70 | Cable | 3 core, 18AWG |
