WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

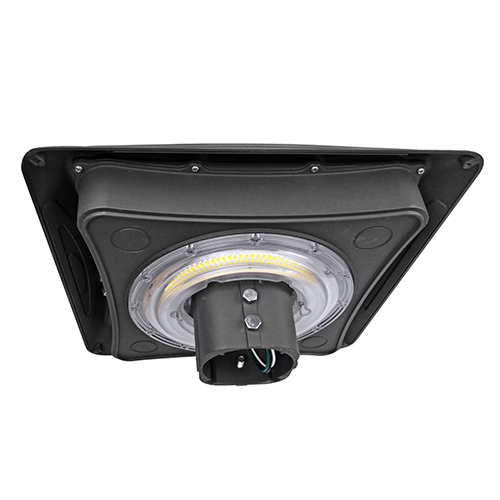

100W LED Post Top Light

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Features:

● High efficiency LED Driver, the wide range input voltage AC120-277
● Top brand LED high luminous efficiency and long life.
● Fins cooling module design, better cooling and easy replacement, light quality, LED Tj < 85℃.
● Excellent optical design, greatly improved the light utilization and evenness.

● Photocell and Motion Sensor Control Available(Option)



Product Applications:

WSD LED Post Top Lighting series can be widely used in Urban roads, industrial areas, residential areas, sidewalks, squares, parks, schools, gardens etc.



Structure Features:

●Shell material:Aluminum & PC
●Color: Dark Bronze
●Net weight:4.50Kg


Technical Parameter:

Type

WSD-PT10W27-XXK-Z

Power 100W Lighting Angle Type V
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 Working Life >50,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 130Lm/W Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP66
CRI Ra>70 Cable

3 core, 18AWG(0.3M)
