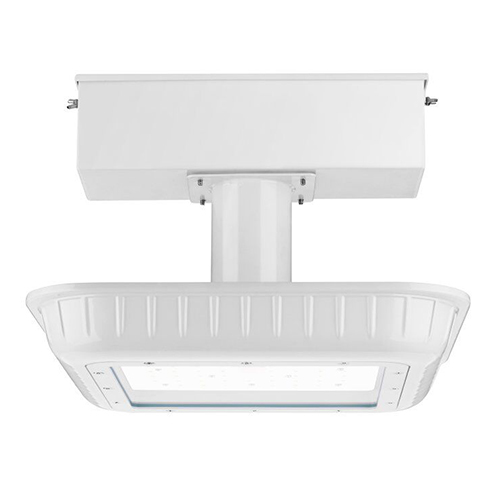

100w Led Gas Station Retrofit Kits

Min.Order Quantity:
1 Set/Sets
Supply Ability:
5000 Set/Sets per Month
Port:
Shenzhen
Payment Terms:
T/T,Western Union,paypal
Description

Product Specification:

fin 100w Led Gas Station Retrofit Kits WSD-GSK-100W Product Specification.pdf





Product Features:

● Philip Lumileds LED, high luminous efficiency and long life.

● High efficiency LED Driver, the wide range input voltage AC120-277V;

● Die cast Aluminum design, better cooling, light quality, LED Tj < 85℃.

● Excellent optical design, greatly improved the light utilization and evenness.



Product Applications:

Can be widely used in Gas Station



Structure Features:

● Shell materials: Aluminum & Glass

● Color: White



Technical Parameters:

Type      WSD-GSK10W27-XXK-XX
Power 100W Lighting Angle 115℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 13000 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>80 Optional dimming function 1-10Vdc
