WISDOM OPTOELECTRONICS TECHNOLOGY CO.,LTD

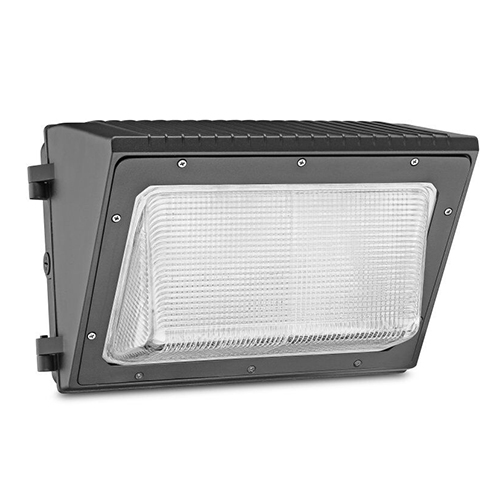

100w Glass Led Wall Pack

Item No.:
WSD-GWP10W27-XXK-Z-P
Description

Product Specification

fin 100w Glass Led Wall Pack WSD-GWP-100W Product Specification.pdf

100w Glass Led Wall Pack WSD-GWP10W IES.rar



Features:

Philips Lumileds LED, high luminous efficiency and long working life.

High efficiency LED Driver, the wide range input voltage AC120-277V.

● Dia cast aluminium cooling design , high quality and better cooling for LED Tj < 85℃.

Excellent Optics design, greatly improve the light utilization and evenness.

Photocell Control Available (Option)



Product Applications:
WSD LED GLASS WALL PACK Lighting series can be widely used in indoor or outdoor lightingWet location, like mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station and indoor stadiums etc.





Structure Features:

Shell materials: Aluminum & Glass

Color: Dark Bronze / White

Net weight:10.80 lbs (4.90kg) Kg Unit:mm

Packing Size:450mm*315mm*310mm



Technical Parameters:

Type WSD-GWP10W27-XXK-Z-P
Power 100W Lighting Angle 87*118℃
Input Voltage AC120~277V LED Brightness Decay <5%/6000 hrs
PF >0.95 L70 Life >140,000 hrs
Driver Efficiency >90% Working Temperature -30-+45℃
Luminous Flux 13500 Lm Storage Temperature -40-+80℃
Color Temperature 3000K/4000K/5000K/5700K Protection Level Wet Location/IP65
CRI Ra>70 Cable Input Connect, No Cable
